Rob Cosman's Wood-Hinge Individual Jigs: 1/2 inch

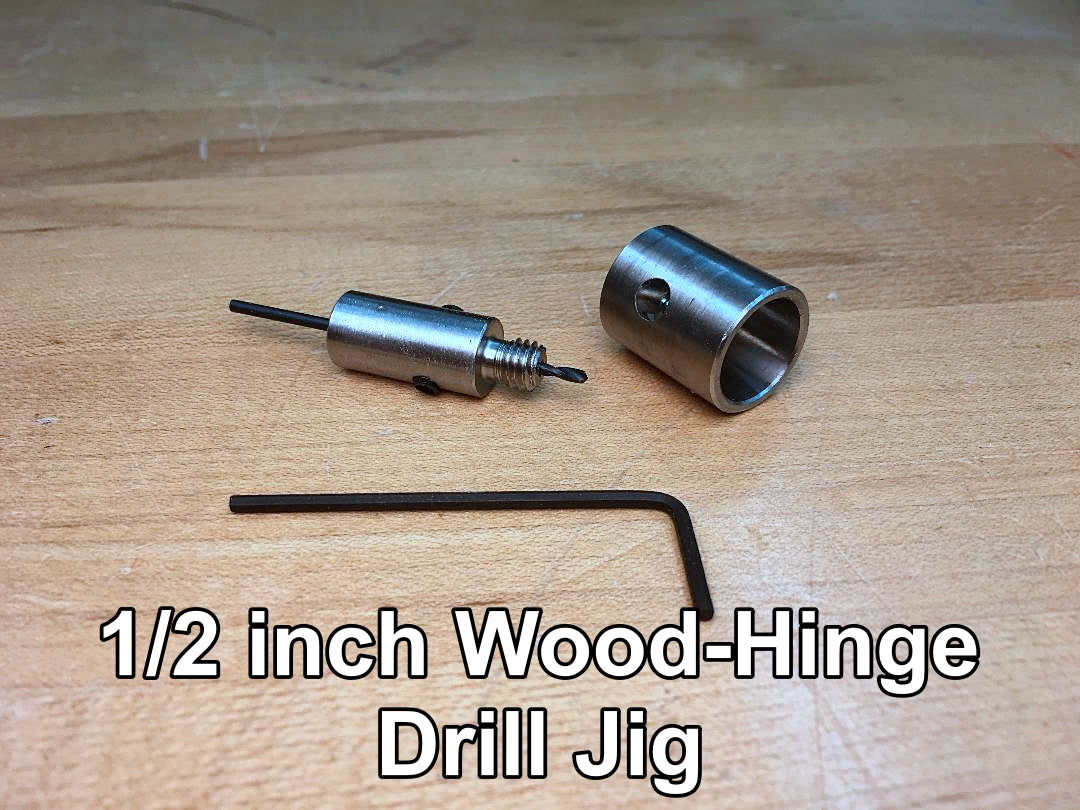

1/2 inch wood-hinge drill jig
  • 1/2 inch wood-hinge drill jig
  • <iframe width="560" height="315" src="https://www.youtube.com/embed/HxckQad62Qw" frameborder="0" allowfullscreen></iframe>
  • wood-hinge

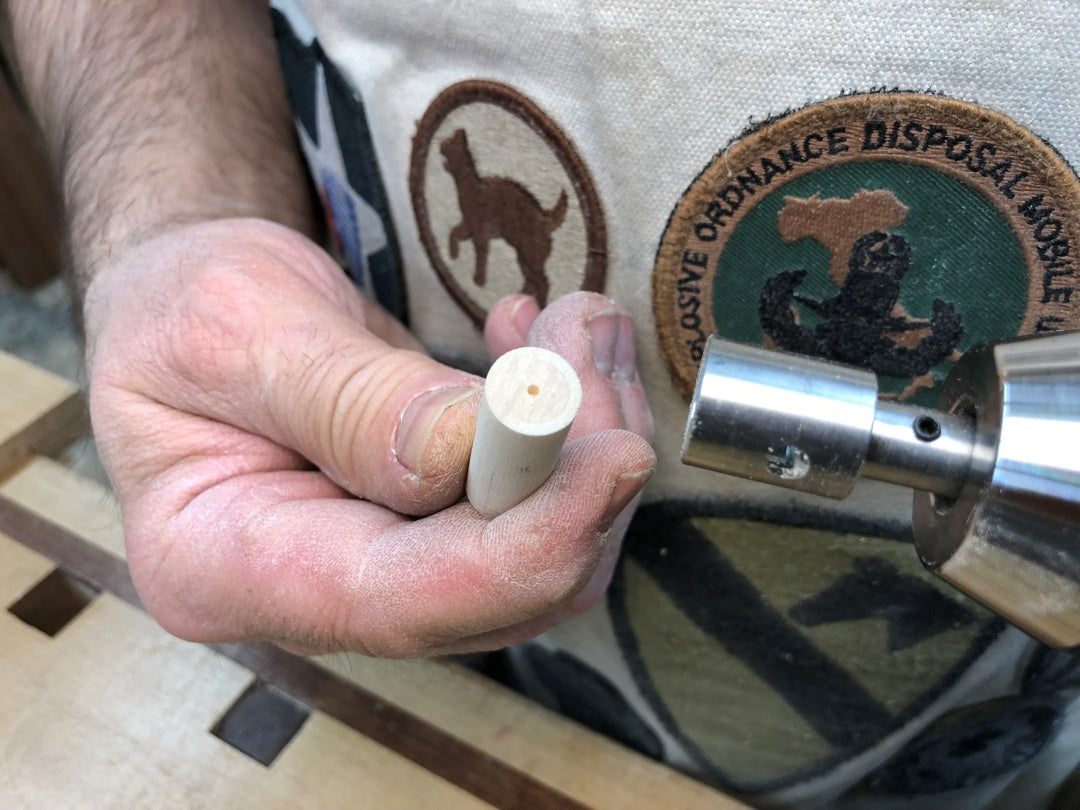

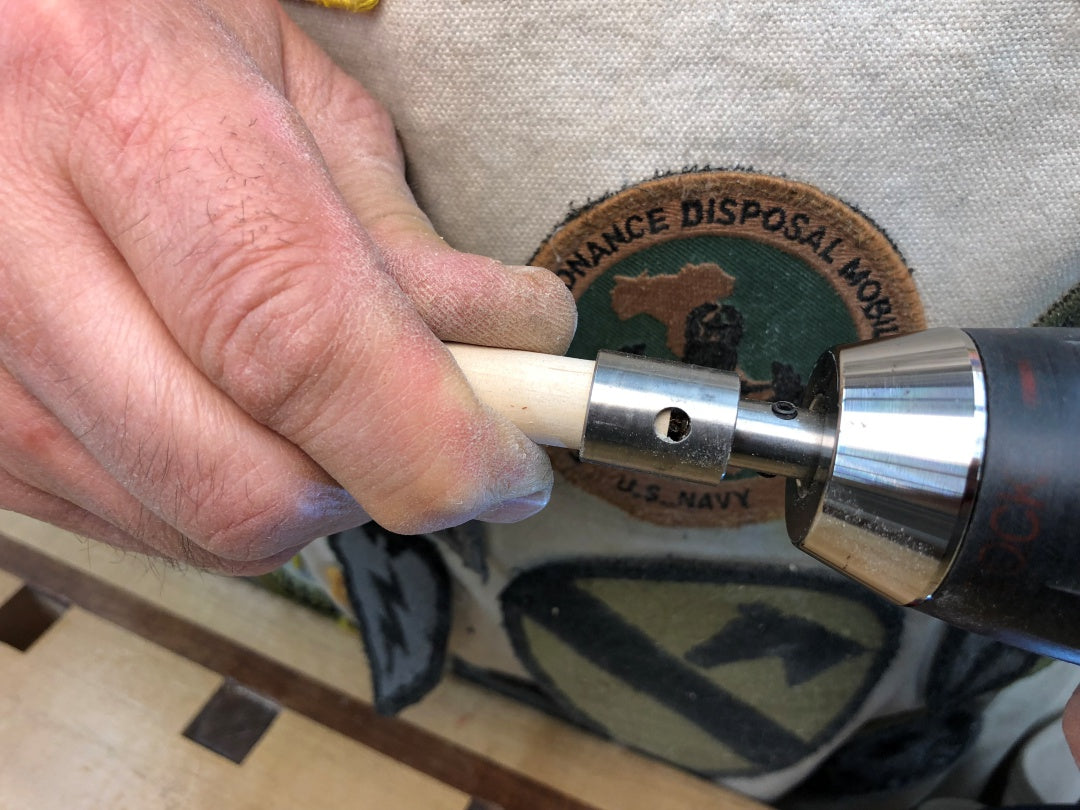

  • Using Rob Cosman's wood-hinge drill jig
  • Using Rob Cosman's wood-hinge drill jig

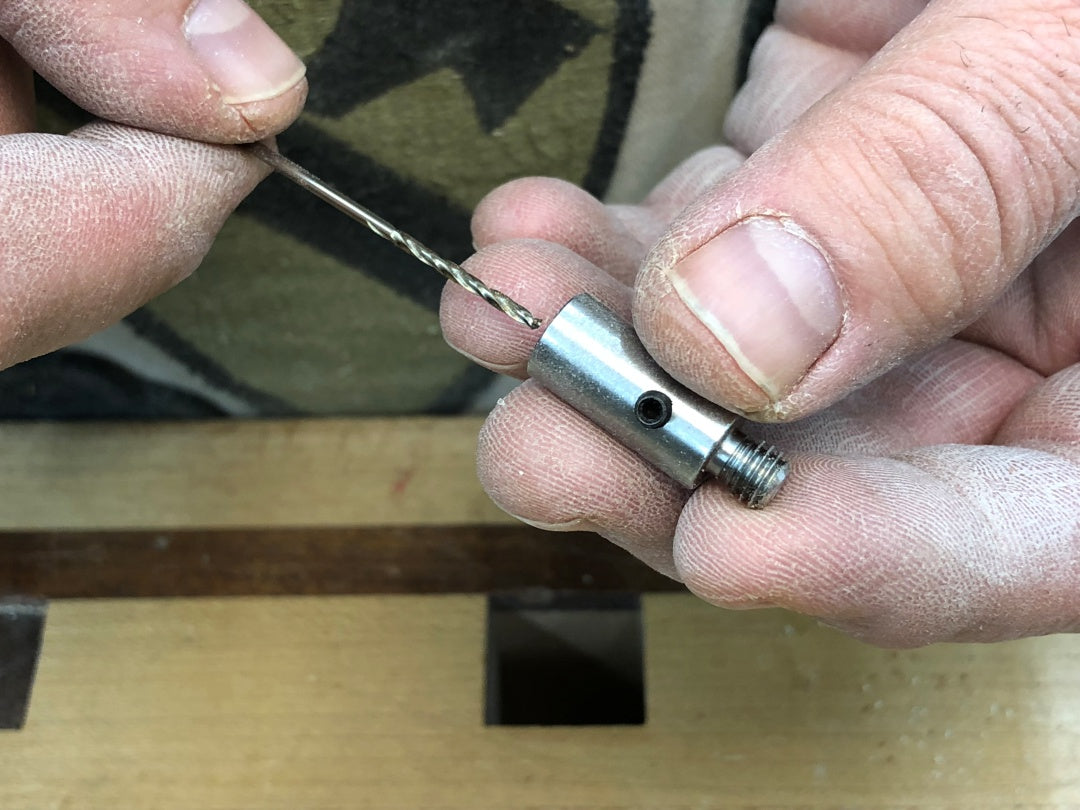

  • Inserting drill bit into Rob Cosman's wood-hinge drill jig

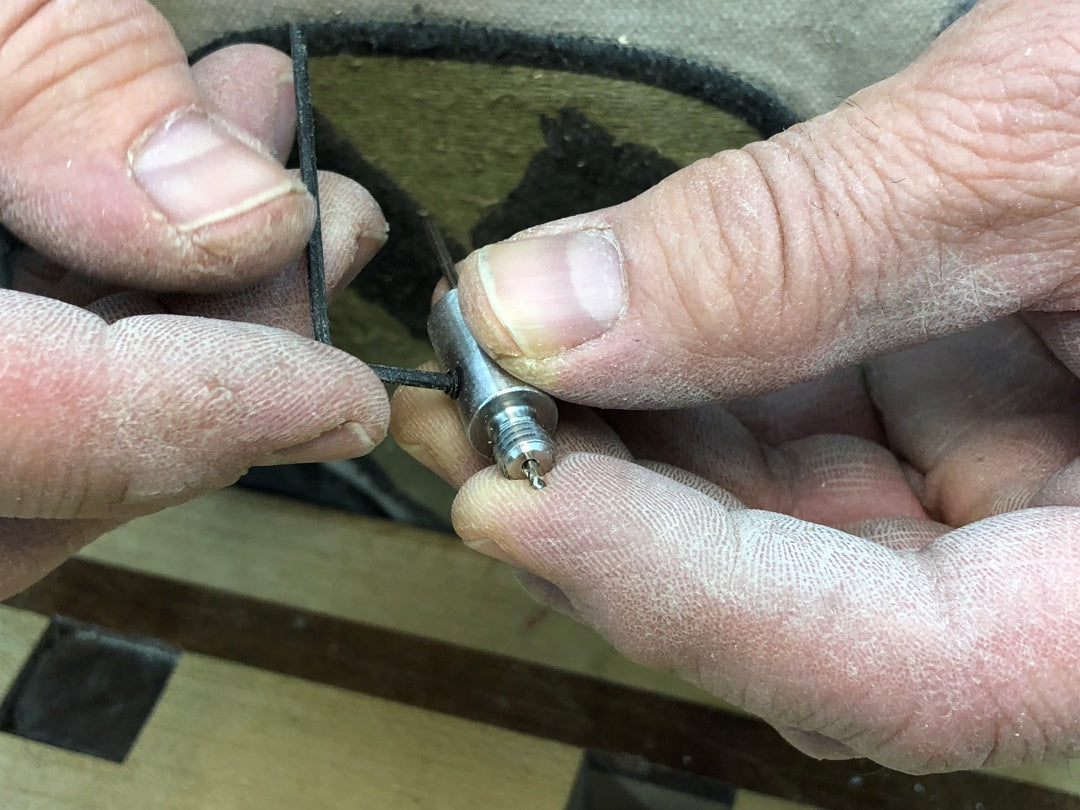

  • Tightening the set screw that locks in the drill bit in the wood-hinge drill jig
  • The Wood-Hinge Box Video

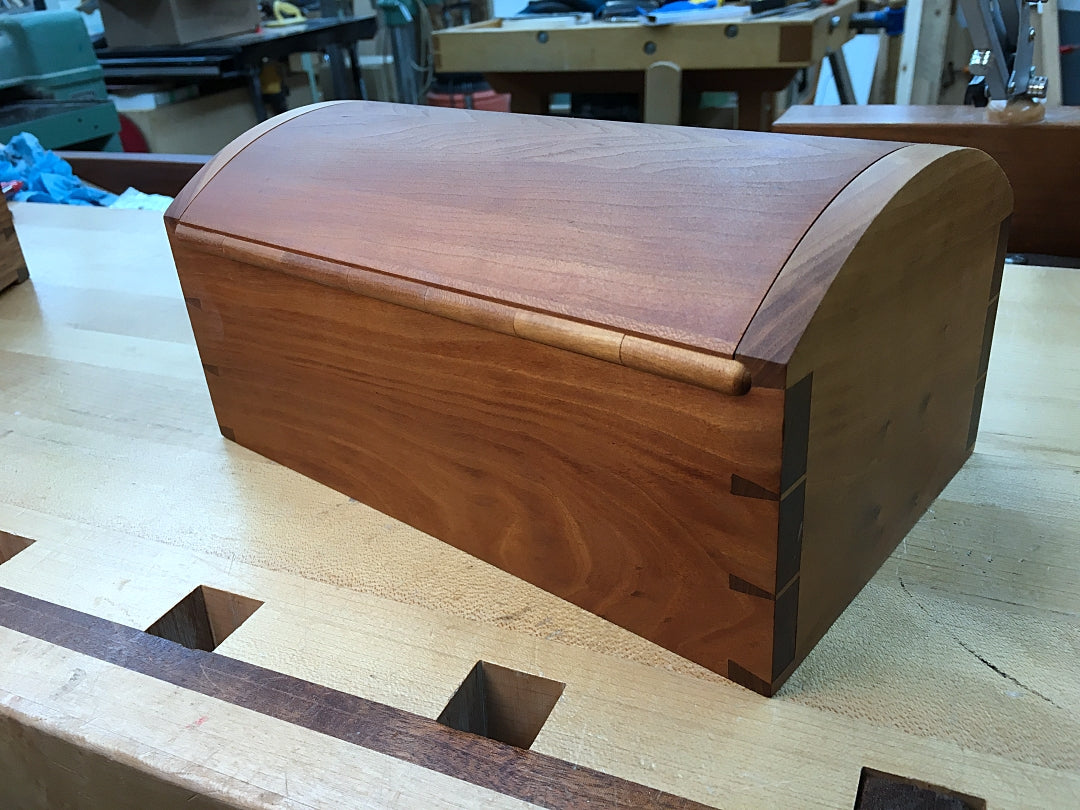

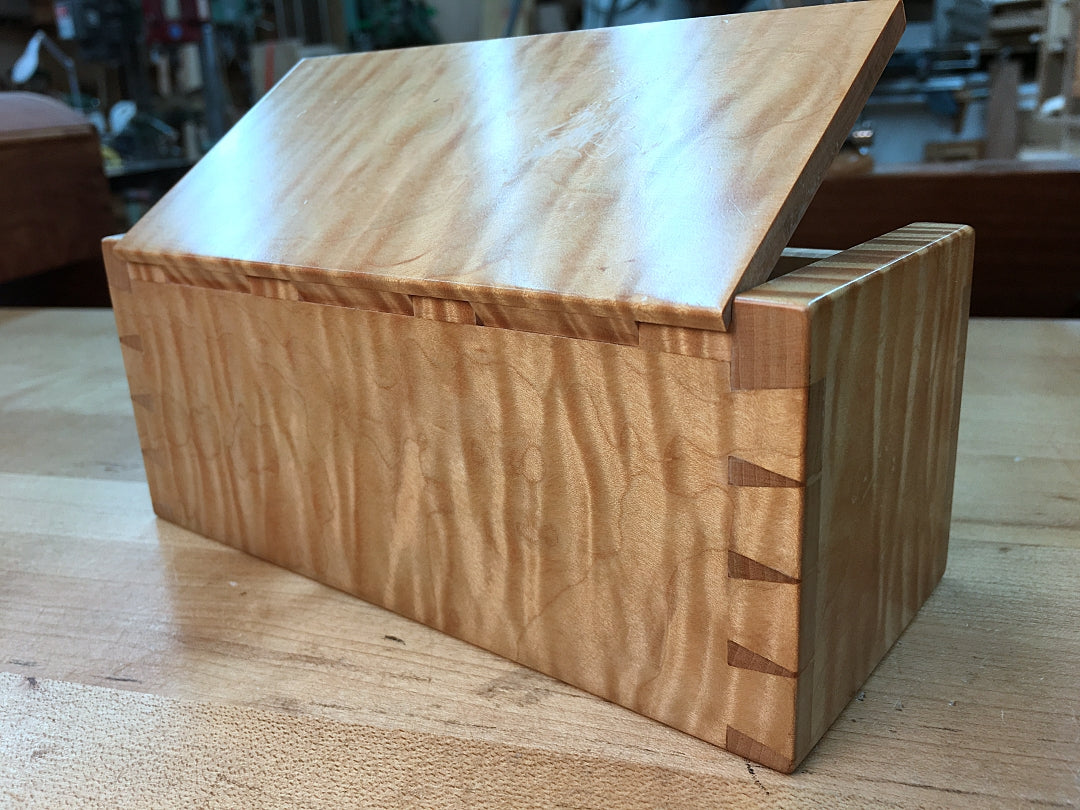

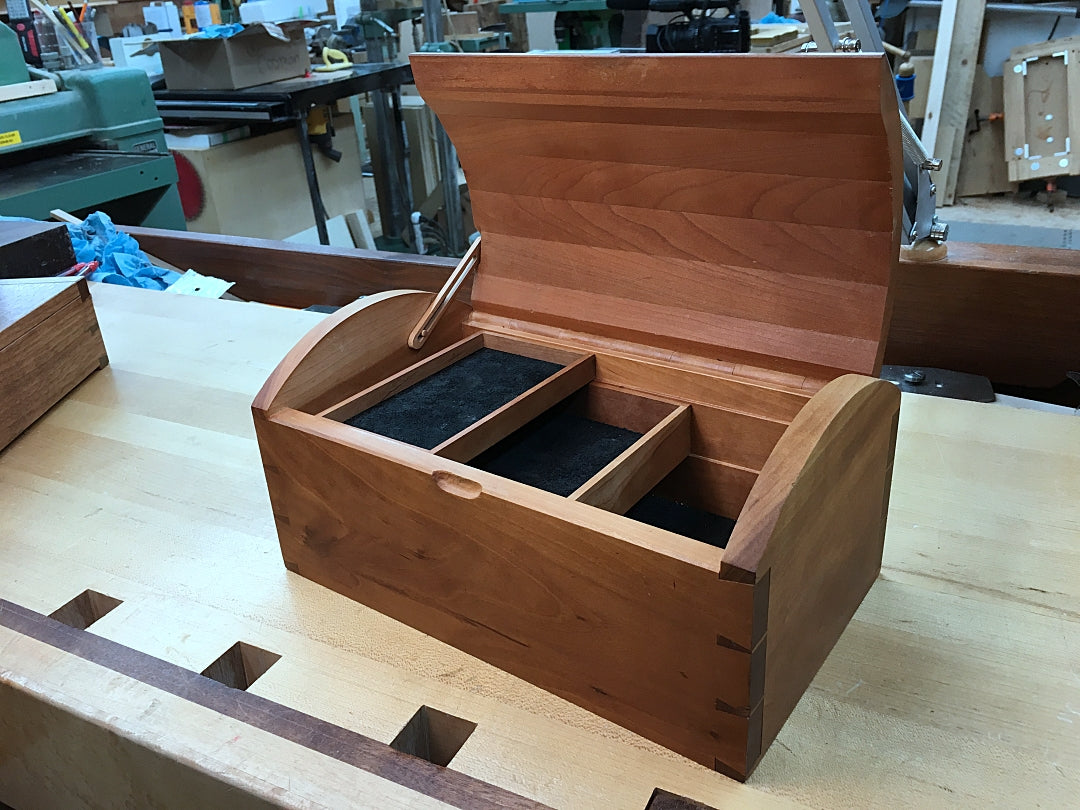

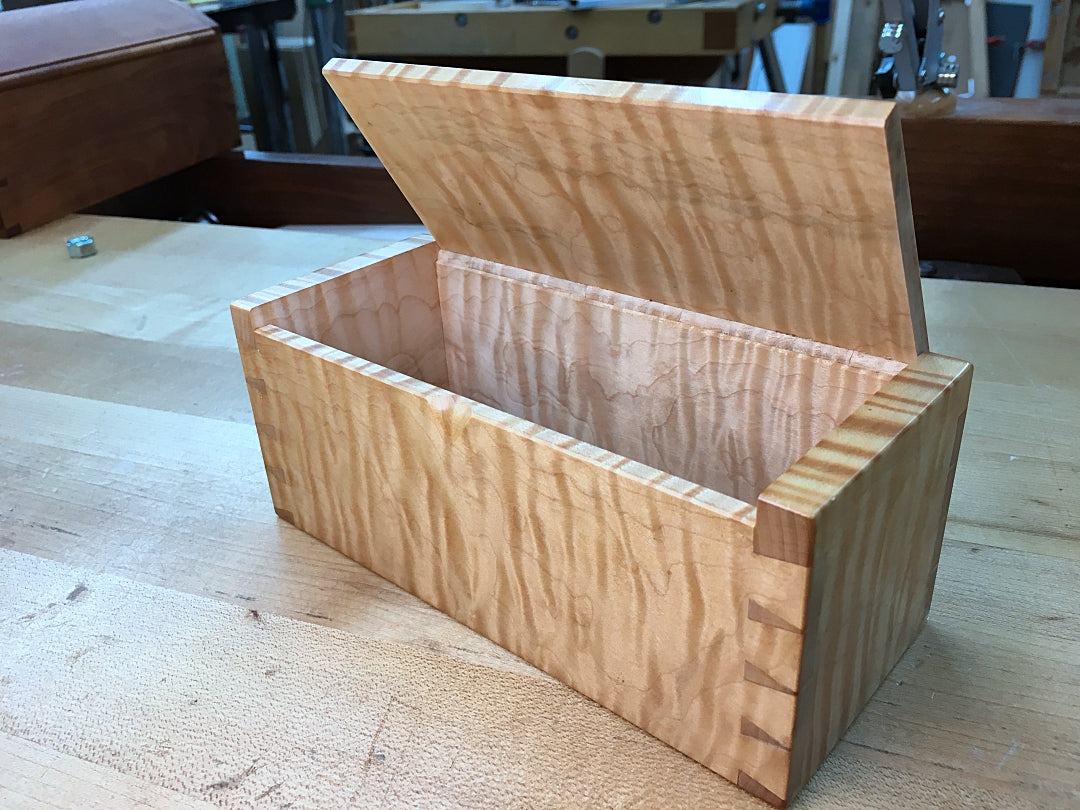

  • Example of a box with a wood-hinge made with Rob Cosman's drill jig
  • Example of a box with a wood-hinge made with Rob Cosman's drill jig
  • Example of a box with a wood-hinge made with Rob Cosman's drill jig
  • Example of a box with a wood-hinge made with Rob Cosman's drill jig

Rob Cosman's Wood-Hinge Individual Jigs: 1/2 inch

Regular price $55.00 USD Sale

12 left in stock.
Gallery
Full Description
Customer Reviews

Master craftsman Dale Nish taught me how to make an amazing wood hinge for boxes.  A wooden dowel is cut into segments, a shallow hole is drilled in the center of each dowel and a small pin is inserted into the hole for the dowel segments to pivot on. I've made thousands of boxes using this style of hinge and I have designed four jigs to precisely drill the hole in the center of dowel segments (the most difficult task).

Product Details

  • Four individual wood-hinge drill jig sizes available: 1/4", 3/8", 1/2" & 3/4"

  • Each individual wood-hinge drill jig includes one dowel jig, drill bit holder, drill bit, and Allen wrench.

  • 1/4" & 3/8" drill jigs come with a 1/16" drill bit.

  • 1/2" & 3/4" drill jigs come with a 1/8" drill bit.

  • Opposing set screws hold the drill bit securely in the holder and allows for adjustment of the hole depth.

  • Port holes in drill bit holder expel the sawdust to prevent clogging.

    You may also like a copy of of my video "Wood-Hinge Box" which shows you step-by-step how to build a wood-hinge box.  Please go to our "Video"collection and add the Wood-Hinge Box video (DVD or On Demand) to your cart.
