Router Bit: Core Box, 1/2 inch

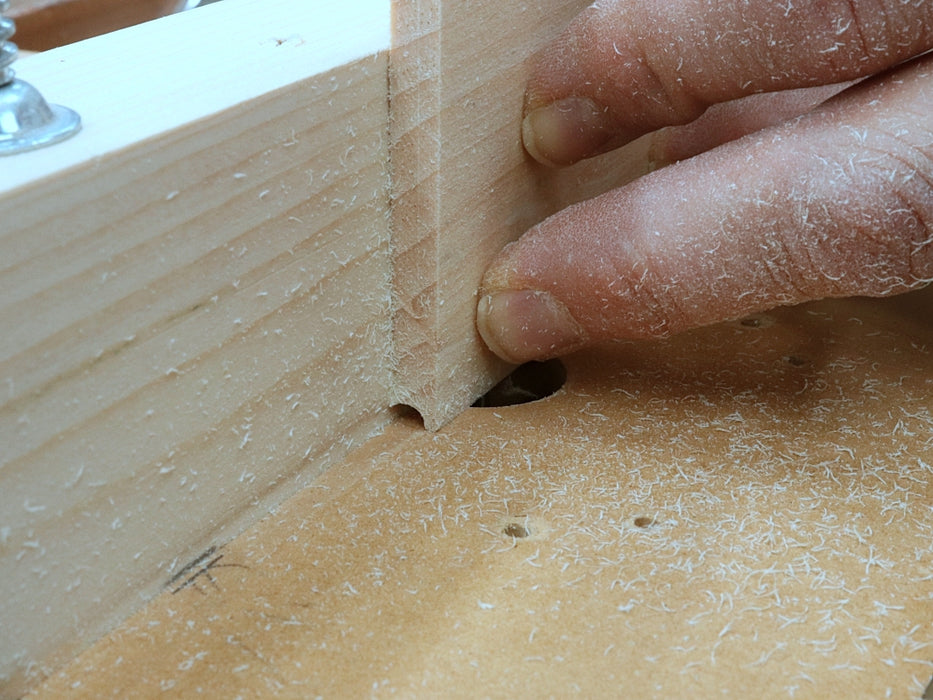

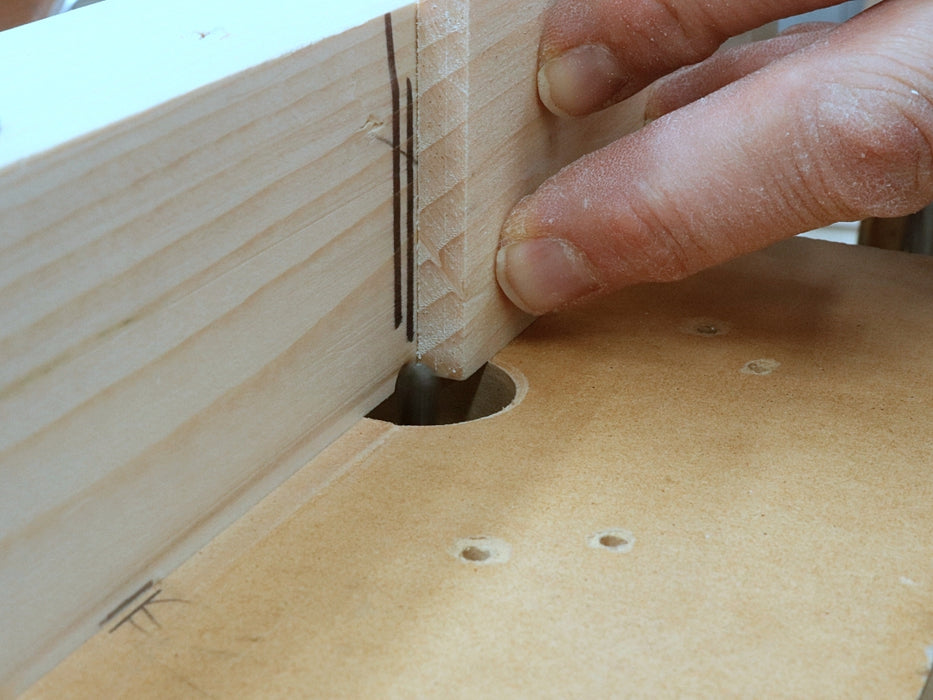

A Core Box, also called a Round Nose, profile router bit is the perfect shape for cutting the groove to accept a dowel for my Woodhinge.
Its important to use a high quality, well made, router bit when making my wooden hinges. The round profile must be clean and have a perfect radius to properly mate to the dowel. After years of trial and error, I found Whiteside router bits to be the best bits for making my woodhinge, and I recommend them to you.
This American made router bit is made from solid alloy steel which is precision ground for proper balance, even at high RPMs. Each of the profiles is made from high-quality, thick micro-grain carbide for durability and longevity. They have high hook and relief angles for better chip ejection giving them superior edge quality.
Router Bit Geometry:
- 1/4 inch shank
- 1/2 inch cutting diameter
- 5/8 cutting length
- 2 inch overall length
I made my first box with a wooden dowel hinge using this bit and Robs Hinge Drill kit and it came out great.
The core bits are great, just what I needed.
core box bits
I haven't started using it yet. I will any day now. I have several other products from Rob Cosman and every other thing has been incredible. His teaching is wonderful.
