Hex Socket Replacement Screws: WoodRiver Version

Original price $12.00 - Original price $12.00
Original price
$12.00
$12.00 - $12.00
Current price $12.00
Gallery
Full Description
Customer Reviews

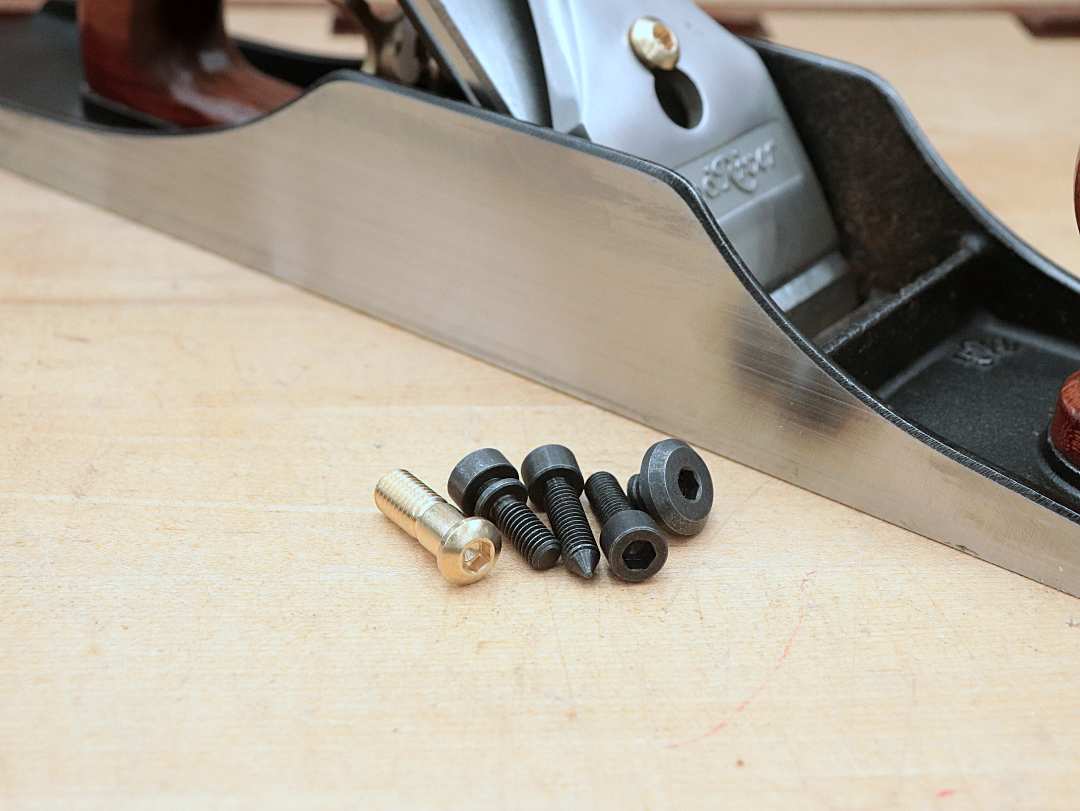

Our Hex Socket Replacement Screws: WoodRiver set, upgrades the five adjustment screws on your WoodRiver bevel down bench planes, giving you significantly better control versus the factory supplied slotted screws.

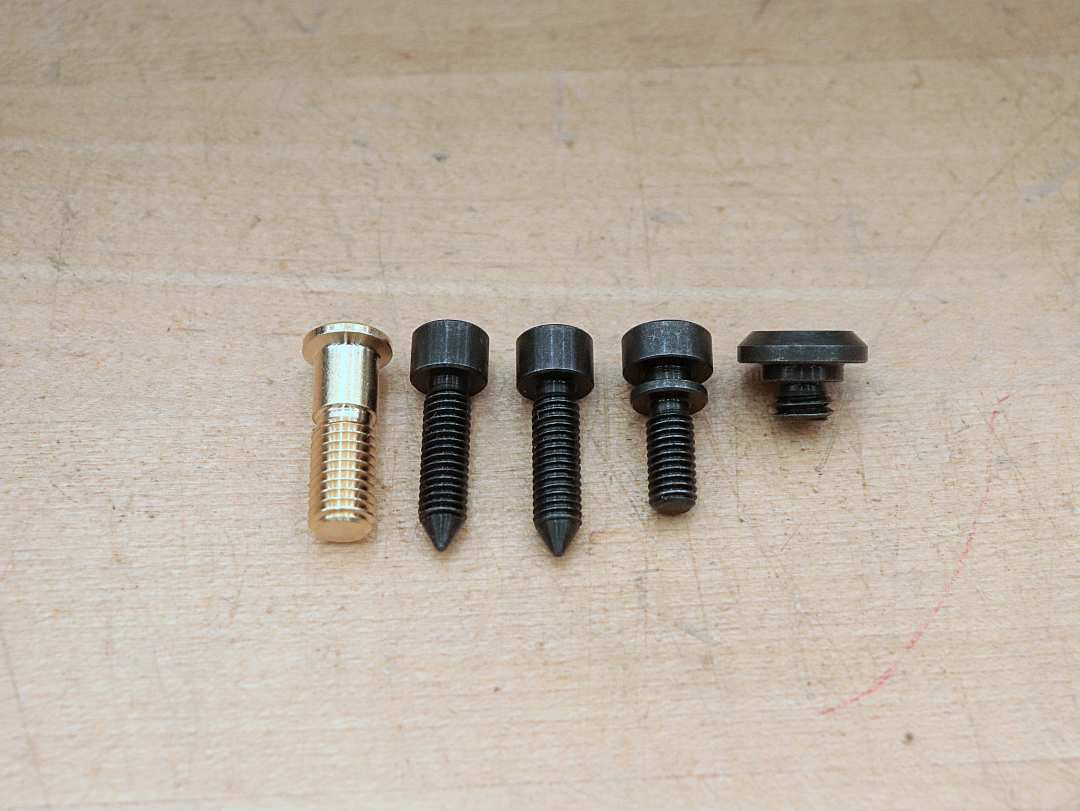

Our hex socket screw set replaces the following five factory screws: lever cap screw, chip-breaker screw, 2 x frog pin retaining screws (bedrock style), and the frog adjustment screw.

Each screw has a 3/16 inch hex socket head so that all our plane adjustment screws can be adjusted using the same size hex driver.

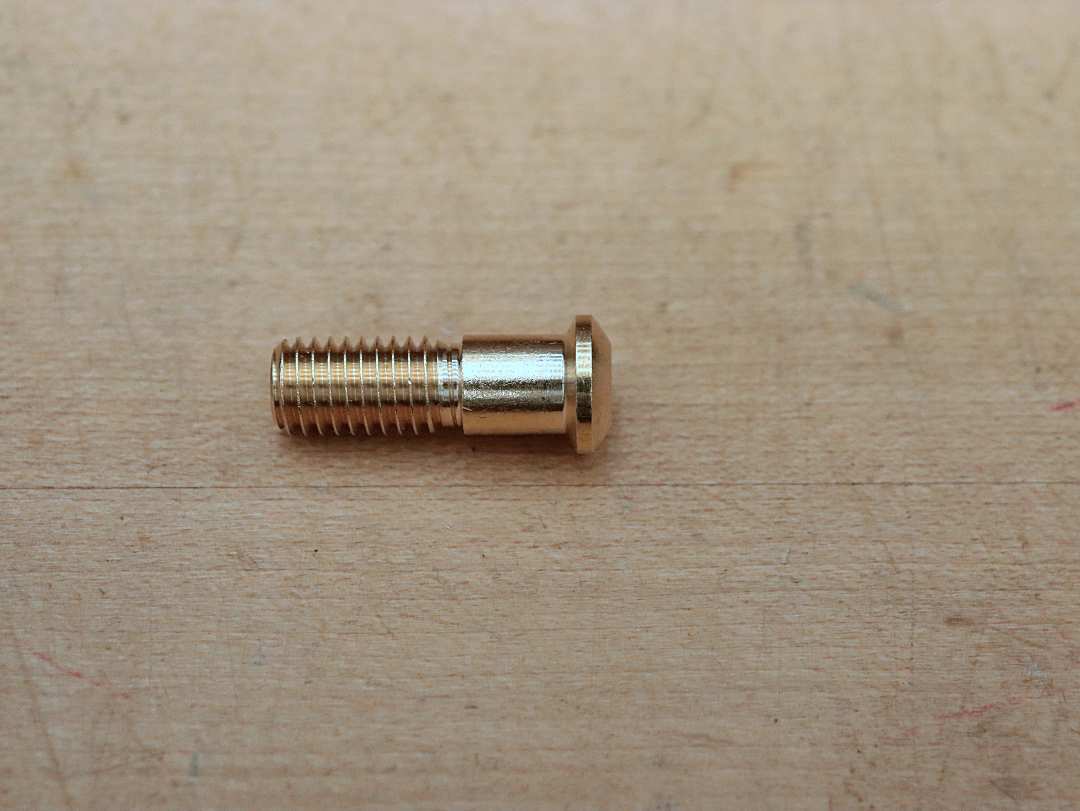

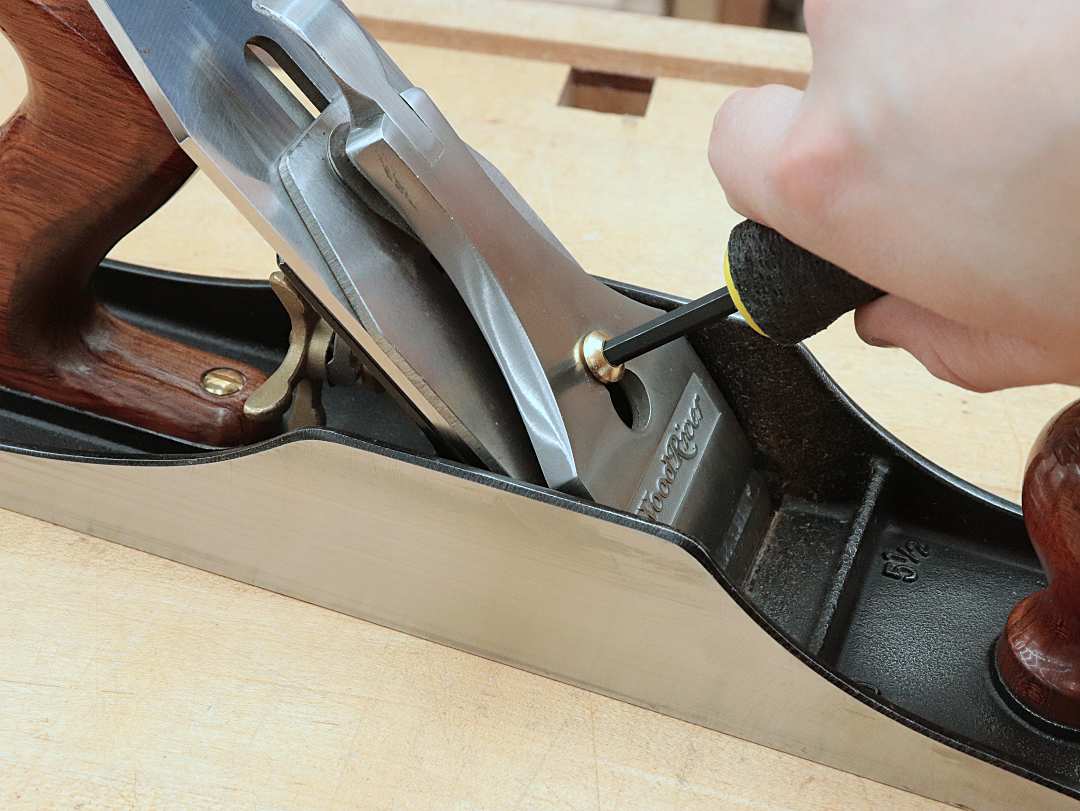

The underside of the lever cap screw is countersunk so that it "grips" the lever cap when pressure is applied preventing the slippage that the factory supplied lever cap screw is prone to doing.

See our Hex Drive Adjustment Drivers for use with these screws.

Product Details:

  • Sold as a set ONLY; no individual screw sales.

  • Fits WoodRiver bench planes #3, #4, #4-1/2, #5, #5-1/2, #6, and #7 ONLY.

  • Screw Thread Sizes:

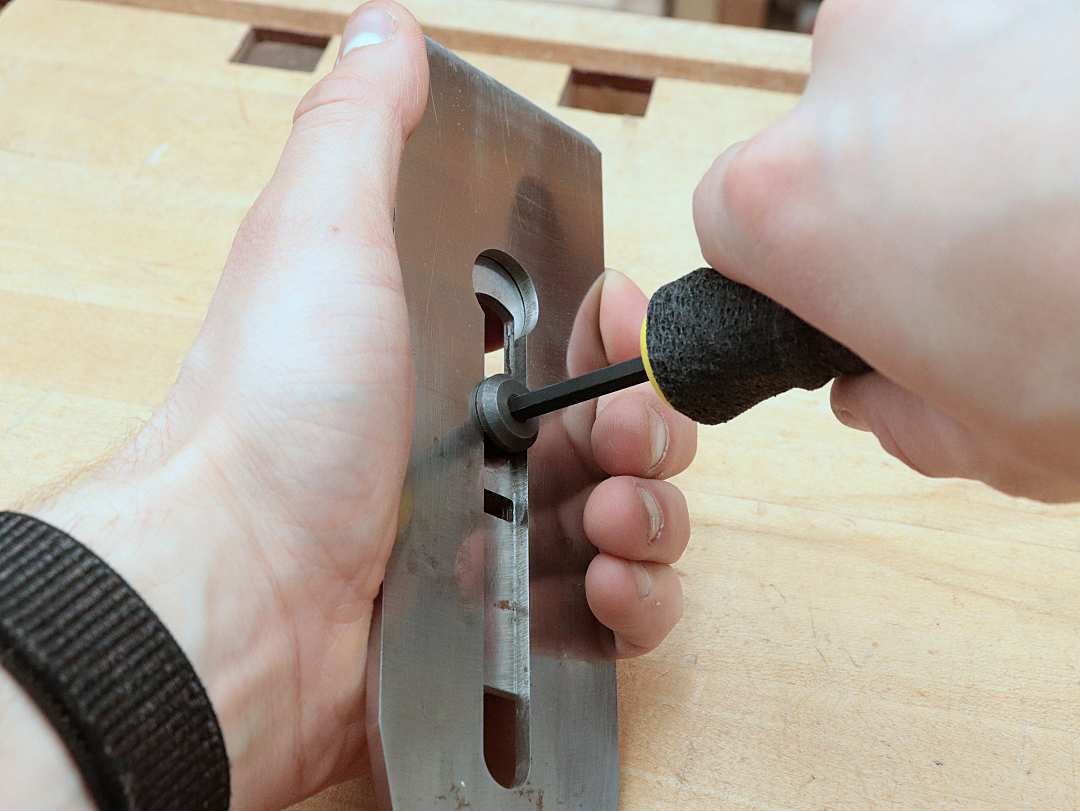

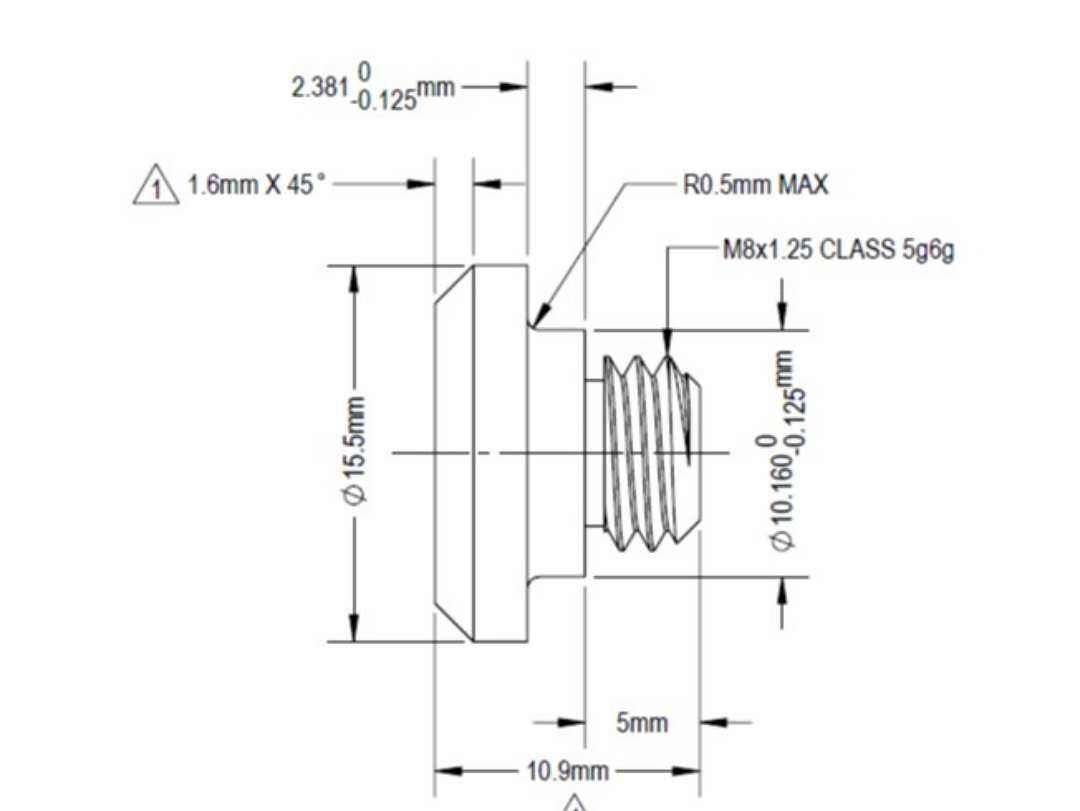

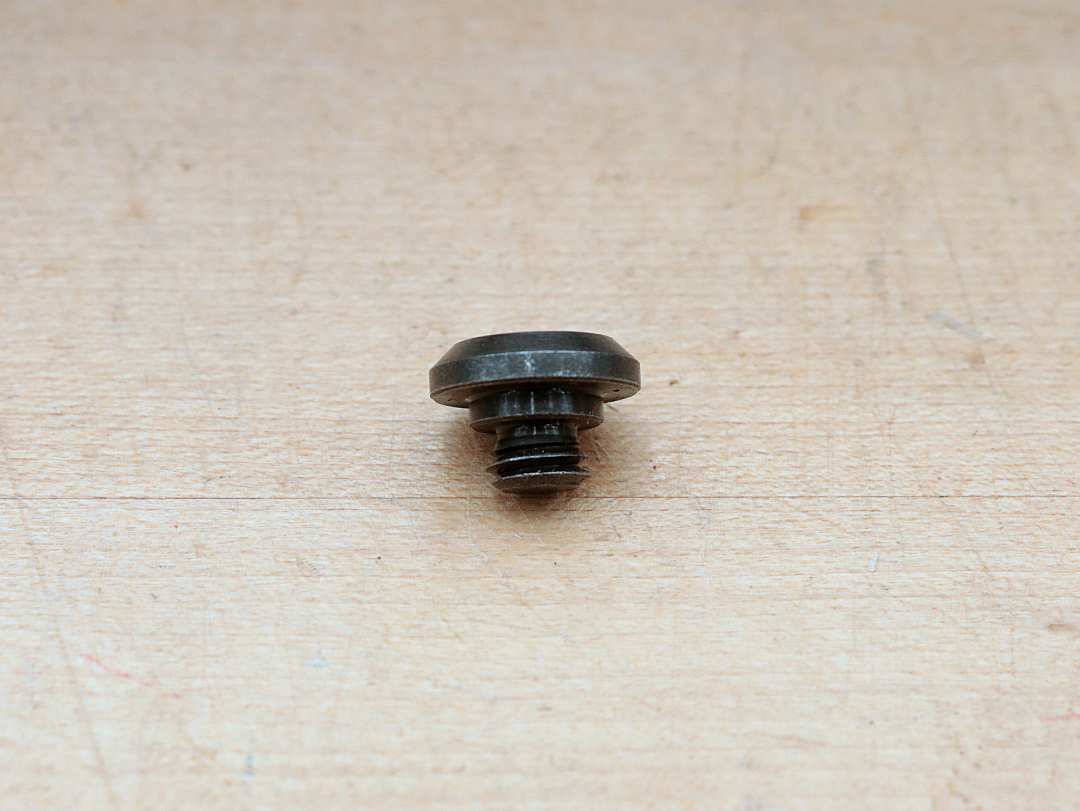

    • Chip-Breaker screw: M8x1.25 5g6g

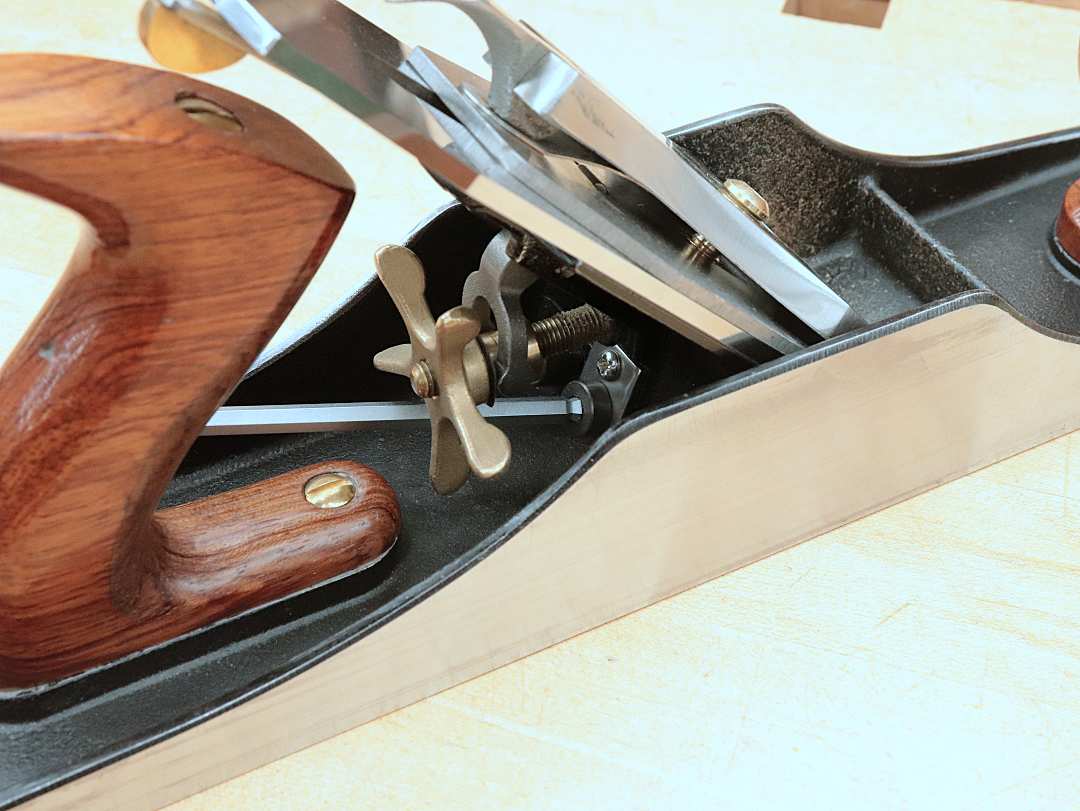

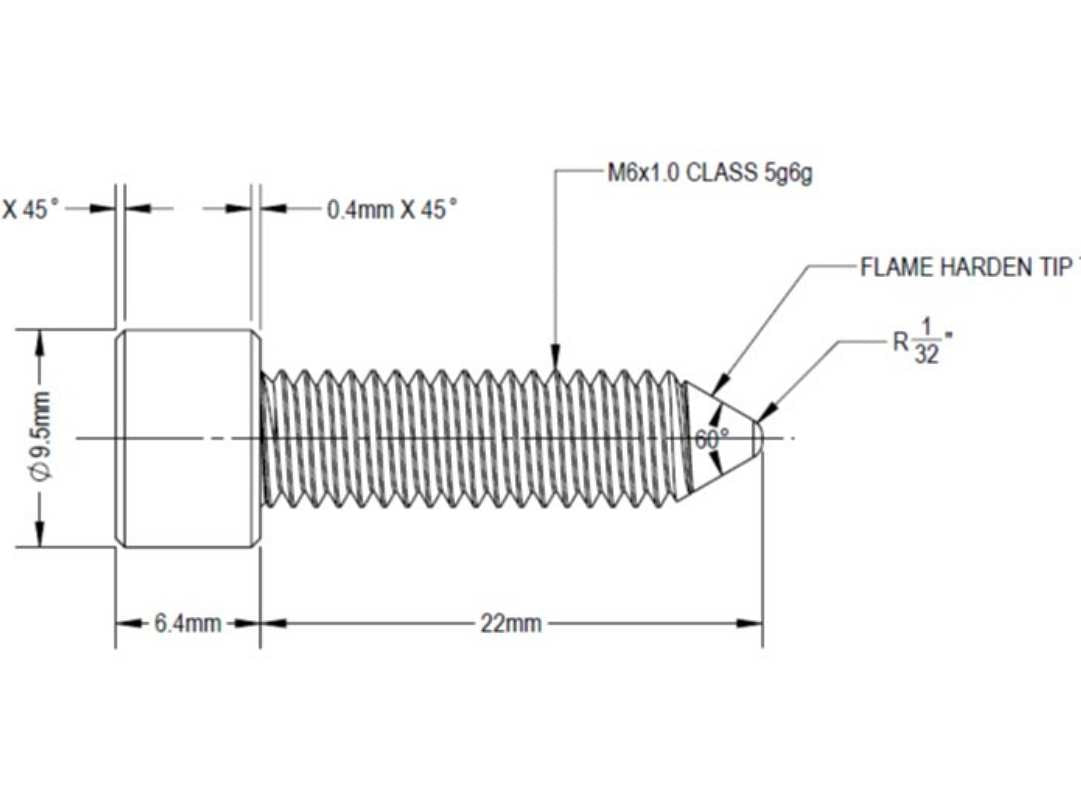

    • Frog Adjustment screw: M6x1.0 5g6g

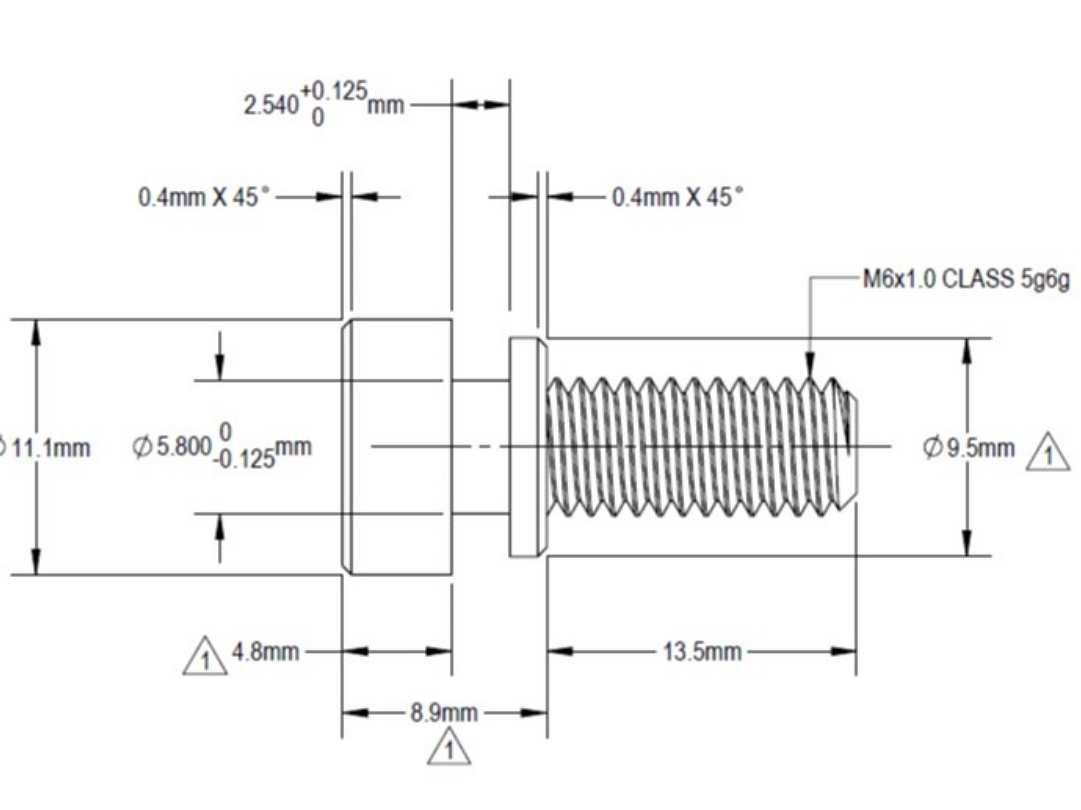

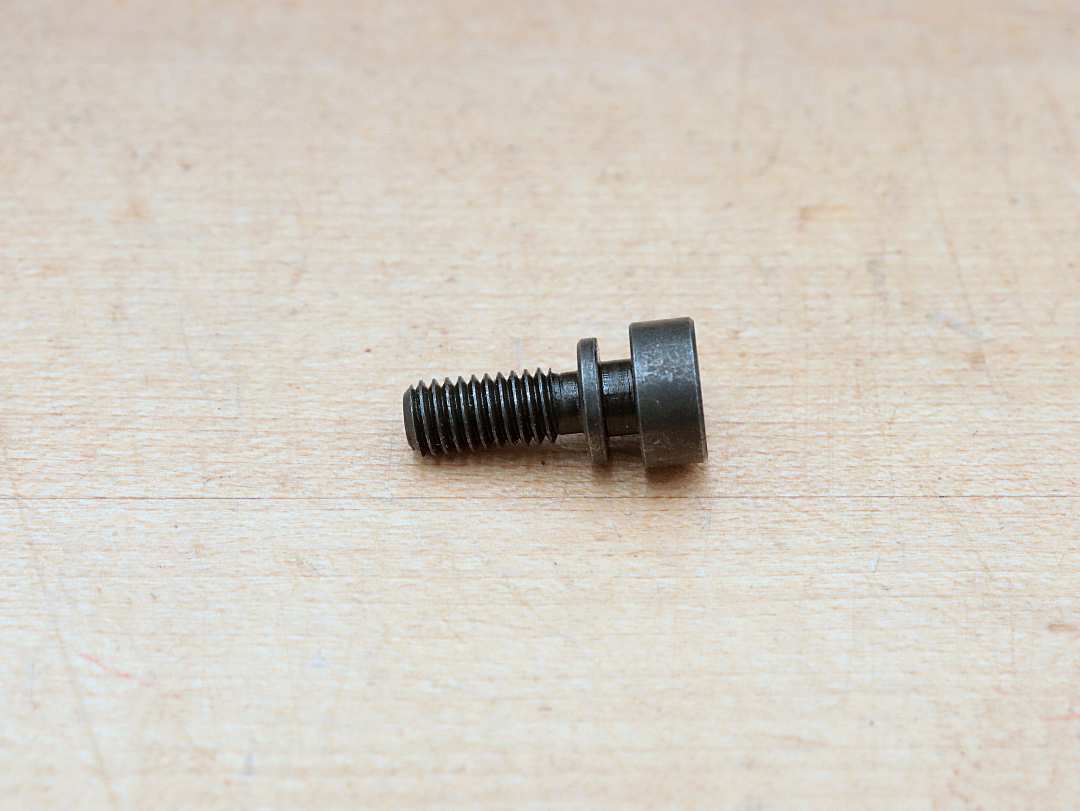

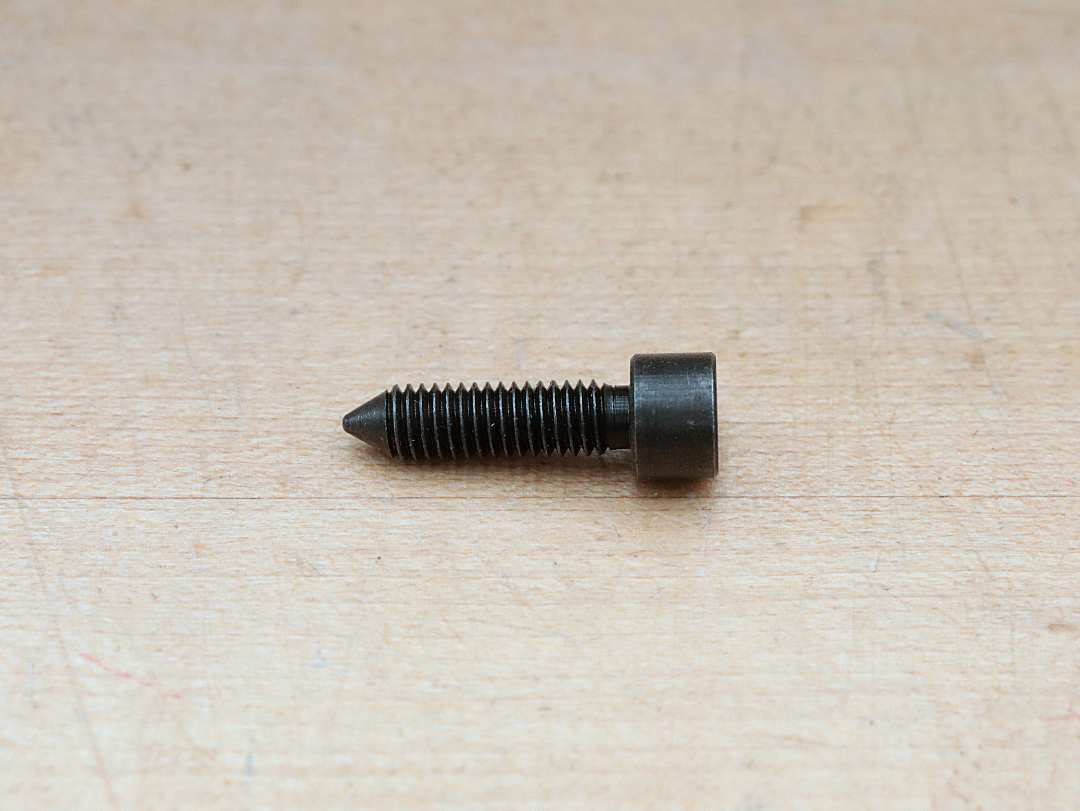

    • Frog Retaining Pin screw: M6x1.0 5g6g

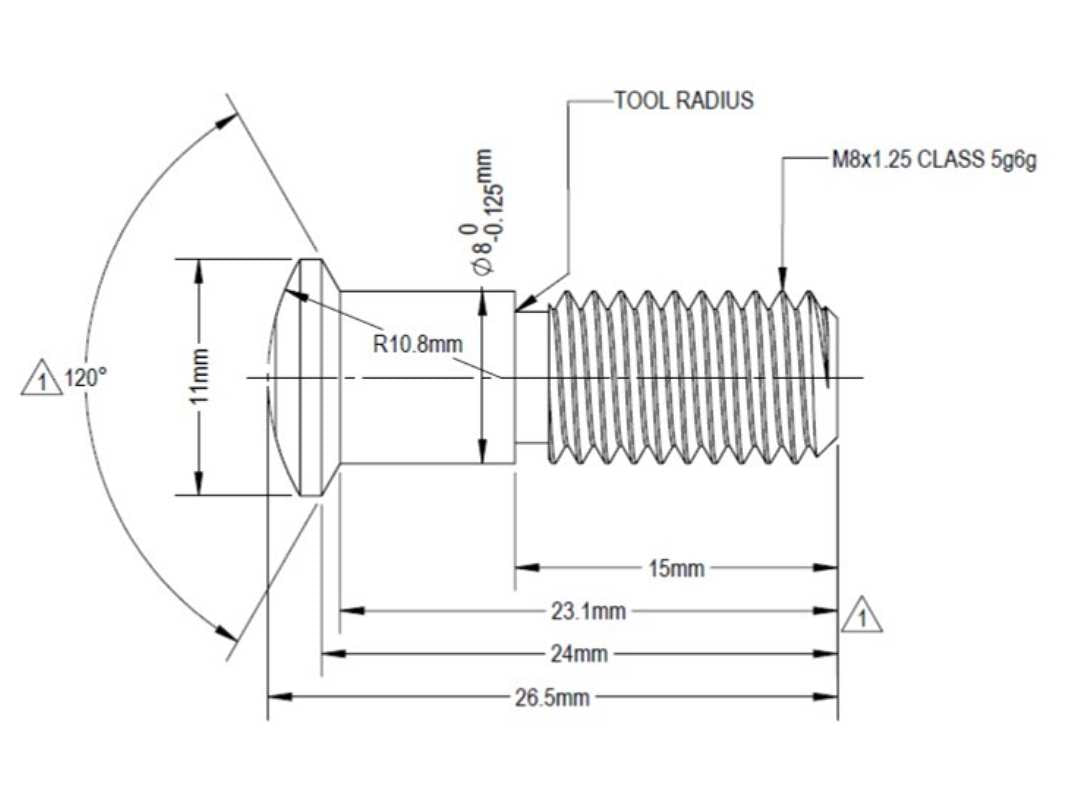

    • Lever Cap screw: M8x1.25 5g6g

Customer Reviews

Based on 49 reviews
90%
(44)
8%
(4)
0%
(0)
2%
(1)
0%
(0)
M
Massimo Farrugia
Great set of replacement screws.

Great idea to make these. I'm gradually changing on all of my planes. Wish they sold the items separately as well though, so you can mix and match. I have a lot of stanley planes which I've adapted for thicker, modern blade and chipbreaker, but you'd have to buy an entire extra set just for the chipbreaker screw. Overall good product, and practical upgrade thought through by woodworkers for woodworkers.

K
Ken Samuelson
Screws worked fine

I like using an Allen much better than standard screws. I recommend this product.

E
Ebby
Quick and easy adjustments

I thought this replacement screw set was a little silly at first, but then I used a plane this week that had the screws switched out and it was so much easier to adjust the frog and remove the blade. I was always worried with slotted screws that the tip of the screwdriver would slip and I would make bits and scrape marks in the screws. With these hex heads the driver skips right into the hex head screw and it makes for a quick and easy adjustment without worrying about damaging the head. Smalll price to pay to eliminate a constant worry.

D
Danny Stocklin, Stocklin Carpentry and Painting LLC
Excellent upgrade!

Received two sets of these today for my #5-1/2 and #6 planes. Solid fits and makes for such easier and secure adjustments. I won't think twice now about moving the frog assembly to reduce tear out, because there is no fear of eventually damaging the old slotted screws Do yourself a favor and get the drivers too!

R
Richard Lucas
Nice Improvement

While I wouldn’t say this is a “must have”, this kit is a nice improvement that, along with the well designed Star Adjuster Wheel, greatly improves the ease of adjusting the frog and overall use of any hand plane.
