Rob Cosman's Wood-Hinge Individual Jigs: 3/8 inch

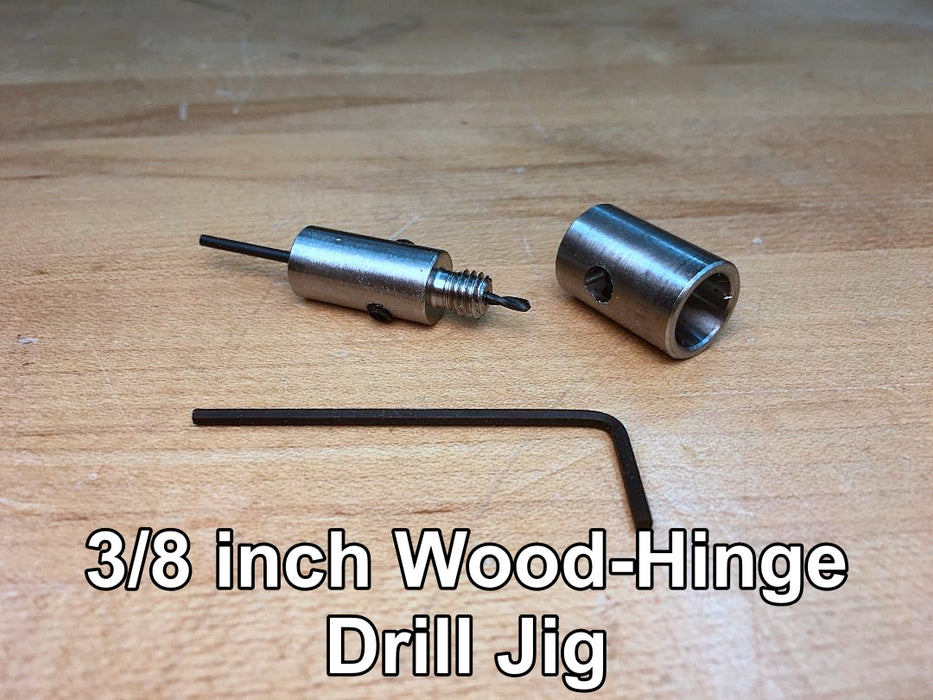

3/8 inch Wood-Hinge Drill Jig
  • 3/8 inch Wood-Hinge Drill Jig
  • <iframe width="560" height="315" src="https://www.youtube.com/embed/HxckQad62Qw" frameborder="0" allowfullscreen></iframe>
  • wood-hinge
  • Using Rob Cosman's wood-hinge drill jig
  • Using Rob Cosman's wood-hinge drill jig
  • Inserting drill bit into Rob Cosman's wood-hinge drill jig
  • Tightening the set screw that locks in the drill bit in the wood-hinge drill jig
  • The Wood-Hinge Box Video
  • Example of a box with a wood-hinge made with Rob Cosman's drill jig
  • Rob Cosman's Wood-Hinge Individual Jigs: 3/8 inch
  • Example of a box with a wood-hinge made with Rob Cosman's drill jig
  • Example of a box with a wood-hinge made with Rob Cosman's drill jig

Rob Cosman's Wood-Hinge Individual Jigs: 3/8 inch

Regular price Sale

Product available
Gallery
Full Description
Customer Reviews

Master craftsman Dale Nish taught me how to make an amazing wood hinge for boxes.  A wooden dowel is cut into segments, a shallow hole is drilled in the center of each dowel and a small pin is inserted into the hole for the dowel segments to pivot on. I've made thousands of boxes using this style of hinge and I have designed four jigs to precisely drill the hole in the center of dowel segments (the most difficult task).

Product Details

  • Four individual wood-hinge drill jig sizes available: 1/4", 3/8", 1/2" & 3/4"

  • Each individual wood-hinge drill jig includes one dowel jig, drill bit holder, drill bit, and Allen wrench.

  • 1/4" & 3/8" drill jigs come with a 1/16" drill bit.

  • 1/2" & 3/4" drill jigs come with a 1/8" drill bit.

  • Opposing set screws hold the drill bit securely in the holder and allows for adjustment of the hole depth.

  • Port holes in drill bit holder expel the sawdust to prevent clogging.

    You may also like a copy of of my video "Wood-Hinge Box" which shows you step-by-step how to build a wood-hinge box.  Click HERE to go to the video product page.





    Customer Reviews

    Based on 38 reviews
    97%
    (37)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    3%
    (1)
    S
    Stephen Flude
    Wood hinge jig

    Well made product, as usual. Great service, as usual. I just wish my talent would rise to the same quality as the Cosman tools.

    V
    Vince Mantegna
    Great tool

    The learning curve is short. Got it the 2nd time. The dowel needs to be exactly the size of the tool. I made the dowel 1/64" bigger and sanded to fit the tool. The tool centers the hole perfectly.

    C
    Curtis Bechler
    Excellent tool

    Excellent product. Fast shipping amazing customer service. Would buy the entire set Instead of just one size if you plan on using scrap pieces. Since they are not always one thick enough.

    R
    Raymond Balmforth
    Wood hinge jig

    Great communication all the way to Australia.. yet to use the jig but I’m sure it will work a treat. Pleasure to deal with.

    H
    Hachemi Bengrine
    Formidable

    Merci Mr Cosman.

    J'ai découvert les charnières construites en bois à travers vos vidéos et j'ai été passionné. J'ai donc acheté les articles nécessaires pour construire une boîte. Les articles sont impeccables. Par contre la réalisation demande une parfaite maîtrise de l'ébénisterie qu'il faudra acquérir avec la pratique. J'en suis à ma deuxième boîte et j'ai déjà constaté du progrès.
    Je recommande fortement ces articles pour ce type de travail.
